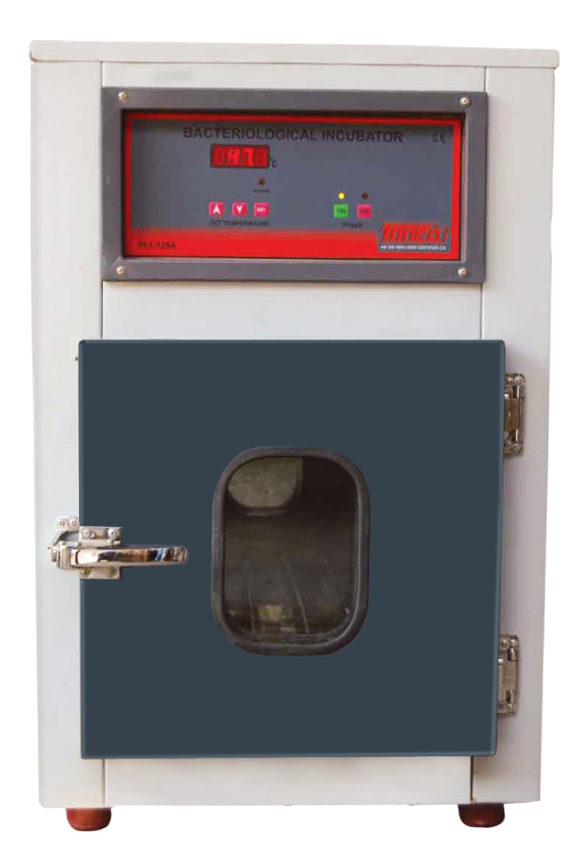

Incubator Bacteriological Digital (PLT-136 A)

APPLICATIONS OF DIGITAL BACTERIOLOGICAL INCUBATOR

Bacteriological Incubator (Memmert Type) Double walled is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies. Our Incubators stands for unparallel precise, even and gentle temperature control.
Double Walled Incubators (Memmert Type) is low cost options for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research used for Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxyl steroids.

SALIENT FEATURES & CONSTRUCTION OF DIGITAL BACTERIOLOGICAL INCUBATOR

Outer chamber is made of Mild Steel duly powder coated.
Inner chamber made of ALUMINIUM or STAINLESS STEEL (304) sheet.
Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
Door has double viewing window to observe the sample placed inside the chamber without disturbing the thermal condition.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
Door Gasket fixed on the double walled door for proper sealing.
Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
Adjustable two ventilation slides control inner air / vapor circulation.
Beaded heating elements made of high quality Ni chrome/Kanthal wire are placed in ribs, at bottom and sides for uniform heat distribution.
Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
Temperature is controlled by electronic digital temperature indicator cum controller from 50^°C to100^°C ± 1°C. fitted on the front panel for easy operations.
Different programme functions can be designed for a wide variety of applications, and even when used
Temperature is displayed by Digital LED with SV and PV display at front of the oven.
Front Panel is provided with ON/OFF switch, temperature controller and indicators
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF DIGITAL BACTERIOLOGICAL INCUBATOR

Model No.	INE 1	INE 2	INE 3	INE 4	INE 5	INE 6	INE 7	INE 8
Inner Chamber in MM (W x H x D)	300x300x300	355x355x355	455x455x455	455x605x455	455 x 605 x 605	605x605x605	605x910x455	605x910x605
Inches Conversion	12 x 12 x 12	14 x 14 x 14	18 x 18 x 18	18 x 24x 18	18 x 24 x 24	24 x 24 x 24	24 x 36 x 18	24 x 36 x 24
Capacity	28 ltrs	43 ltrs	90 ltrs	105 ltrs	120 ltr	215 ltrs	240 ltrs	325 ltrs
Heating Load	0.50 KW	0.50 KW	1.00 KW	1.00 KW	1.50 KW	1. 50 KW	1.50 KW	2.00 KW
No. of Shelves	2	2	2	2	2	2	3	3
Temperature Range	5^°C above ambient to 70^°C
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Sensitivity	+1^°C.
Air Circulation	By forced convection system
Relay	Solid state electronic relay with protective heat sink.
Auto Tuning System	System is compatible with auto tuning system

OPTIONAL FEATURES OF DIGITAL BACTERIOLOGICAL INCUBATOR

Controlling of Temperature	By Profile (Micro Programmable Controller)
Audio Alarm System	Activates at end of cycle Buzzer.
Timer Facility	Can be in built with Digital Electronic Timer
Communication Port	RS - 485 with Window based software
PLC Based Control Systems	With Touch Screen Display with Direct Thermal / Dot Matrix Printer.
With Touch Screen Display with Direct Thermal / Dot Matrix Printer.	16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.

Note: Air Circulation fan is recommended for INC-5, INC-6, INC-7 & INC-8.
