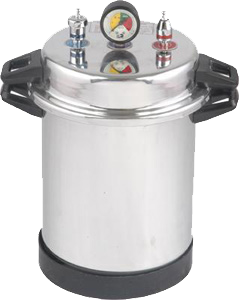

Portable Autoclave (Cooker Type) (PLT-105 E)

APPLICATIONS of Portable Autoclave Pressure Cooker Type
  • "TANCO" Pressure Cooker Type Portable Autoclave is low cost device for general sterilization ideal for doctors, nursing homes, laboratories, dentists etc.
  • Mainly used as general laboratory equipment where samples in small batches are required to be sterilized.
SALIENT FEATURES & CONSTRUCTION of Portable Autoclave Pressure Cooker Type
  • Unbeatable combination of quality, performance and value.
  • Easily operate anywhere, anytime.
  • Light weight & easy to carry.
  • Available Electrically / Gas Heated, Single walled, (joint less body) complete with Stand in Aluminum deep drawn Seamless construction & Stainless Steel Models.
  • Stylish, Light, Compact, Portable Easy to use top loading autoclaves.
  • Fast 25 min. Sterilizing cycle at 1210 C.
  • Hydraulically tested up to 40 psi for user safety.
  • Spring loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
  • Lid is fitted with pressure gauge, safety valve and manual exhaust valve.
  • Vacuum breaker-cum-purge valve works as a safety device.
  • Lid Closing by Press & Turn System.
  • Moulded neoprene rubber gasket.
  • Extended life Lid Gasket and Heating Element.
  • Pressure Gauge show internal chamber condition during the cycle.

Model No. APC - 1 APC - 2 APC - 3 APC - 4
Hight * Dia 275 x 225 mm 300 x 300 mm 350 x 300 mm 550 x 300 mm
Capacity 10 ltr 21 ltr 24 ltr 39 ltr
Heat Load 1.5 KW 1.5 KW 2.0 KW 3.0 KW
Gasket (Joint less) Neoprene
Chamber Wall Single Walled (Seamless)
Exhaust of pressure Manually through aexhaust valve
Pressure Gauge 0-2.1 kgf/cm² (30 psi)
Sterilizing Pressure 0-2.1 kgf/cm² (15 psi) at 121°C.
Hydraulically Tested Up to 40 psi
Pressure Vessel Aluminum / Stainless Steel (SS-304)
Power Supply 220/230V AC, 50/60 Hz
