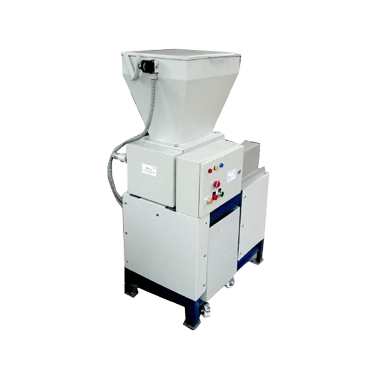

Bio-Medical Waste Shredder (PLT-244 A)

Key Features

Shredding Capacity: 25 Kg/hr
Type: Low-Speed/Low-RPM (30-40 RPM )
Blade Material: Non-corrosive, hardened alloy steel for maximum durability
Motor: 3 KW induction motor, with at least 4 HP capacity for efficient waste shredding
Construction: Outer body made of mild steel (5 mm thickness), ensuring durability and strength
Waste Feeding: Manual through hopper, designed for ease of operation
Discharge Height: Minimum 3 feet from discharge point to ground level for easy waste collection
Safety: Includes automatic stop/reversing features, overload protection, and interlocking with limit switch

Safety Features

Operational Safeties

Overloading Safeties

Emergency Stop

Limit switch to automatically stop shredder when hopper lid or collection box door is opened
Shock-loading detection for automatic shutdown in case of non-shreddable material

General Safety

Technical Specifications

Material of Construction (Outer Body): Mild Steel (M.S), 5 mm thickness
Cutter Material: Hardened Alloy Steel, non-corrosive
Waste Feeding Platform: MS Structure, 3 feet height from discharge point to ground level
Waste Feeding System: Manual through Hopper
Drive Mechanism: Belt or Gear Drive
Motor Capacity: 3 KW or less, with a minimum of 4 HP induction moto Operational Requirements
Robust Design: Designed for minimal maintenance with a sturdy build
Minimal Manual Handling: Reduces manual involvement to ensure safety
Hopper & Cutting Chamber Design: Accommodates waste bags for seamless loading
Induction Motor: Ensures low RPM for safety and better cutting performance
Power Requirement: 220 VAC, 50Hz, single-phase with an appropriate Indian plug
Power Input: Efficient use of electricity for optimal performance
