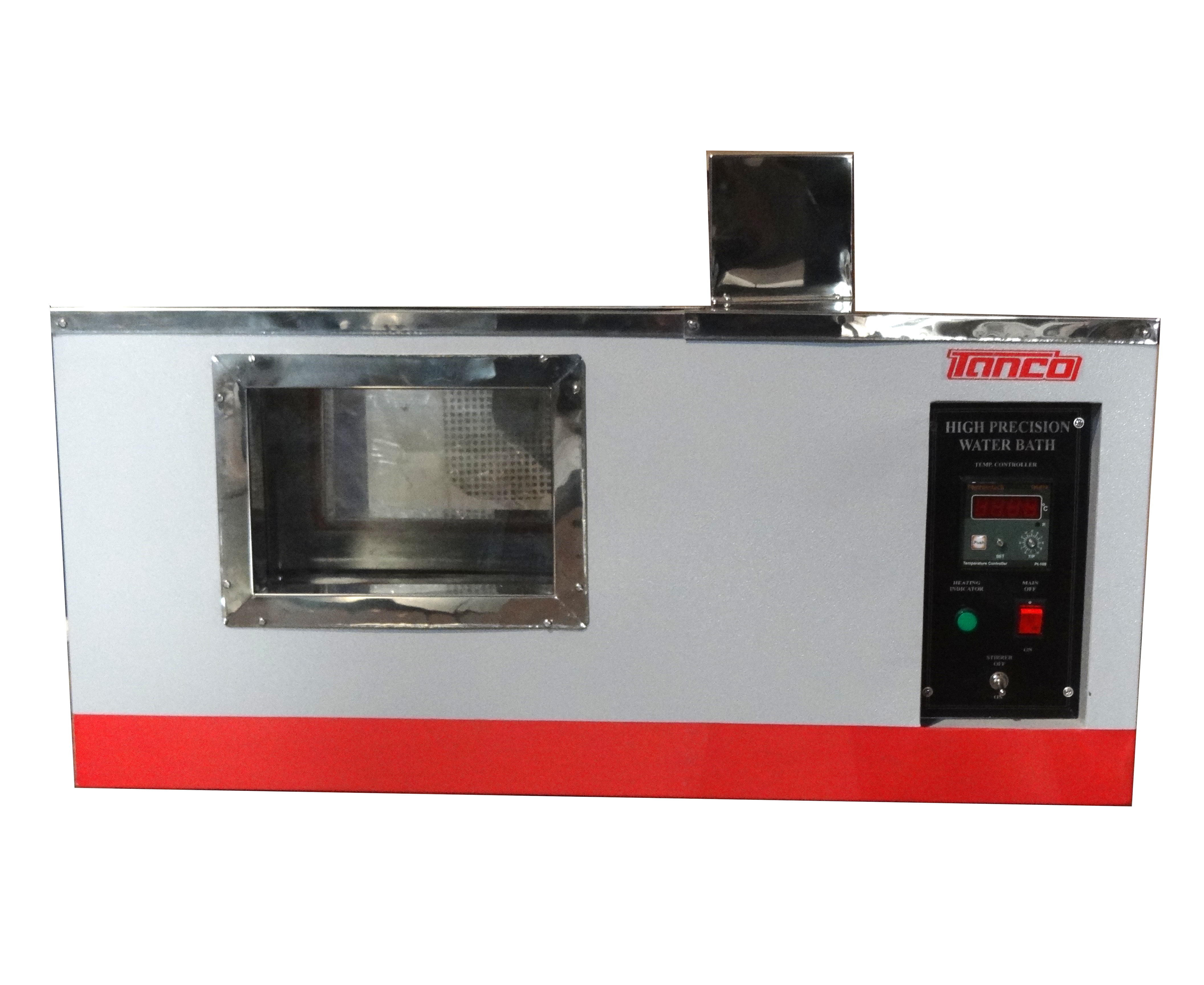

High Precision Water Bath (PLT-110)

APPLICATIONS of High Precision Water Bath

High precision water bath is a versatile equipment to handle highest level of performance, flexibility and control for most demanding applications.
High precision water bath is best options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical or Industrial Applications.

SALIENT FEATURES & CONSTRUCTION of High Precision Water Bath

Double walled construction.
Inner Tank and lid made of Stainless Steel (SS-304 grade).
Outer chamber is made of Mild Steel duly powder coated.
Flat Stainless Steel Lid prevents Evaporation.
Heating by immersion heaters.
Fitted with glass window one side to see samples placed in bath.
Temperature range up to 95^oC.
Controls temperature within an accuracy of ±0.1^oC.
Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
Fitted with drain plug for easy cleaning.
The unit is supplied with stirring arrangement.
The stirring arrangement consists of a FHP motor with SS stirring shaft for continuous stirring and thus maintaining a uniform temperature throughout.
Speed regulator is provided on the front panel to control the stirrer
To work on 220/230 Volt AC supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION of High Precision Water Bath

Model No.	WBP 1	WBP2
Interna Dimeisions (LxWxD)	430x 240x 265mm	280x 360 x380mm
Approx. Capacity	26 Ltr.	29 Ltr.
Top Lid	Stainless Steel
Heating Load	1.5 KW (1.0 KW+0.5 KW)
Temperate Range	ambient +5^°C to 95>C
Temperature Control	By Mcroprocessor based PID dgtal temperature indicator-cumcontroller
Temperature Accuracy	± 0.1^°C
Temperature Sensor	RTD (Pt-100)
Temperate Display	LED display for set value (SV) & process value (PV)
Stirrirg Arrangement	By F.H.P. stirrer fitted with stainless steel shaft & Blades
Stirring Speed	Can be regulated by speed regulator.
Diffuser Shelf	Heater protective perforated cover made of stainless seel

OPTIONAL FEATURES of High Precision Water Bath

Controlling of Temperature	By Profile (Micro Programmable Controller)
Audio Alarm System	Activates at end of cycle Buzzer.
Timer Facility	Can be in built with Digital Electronic Timer
Communication Port	with interface and data cable to download data to your PC
