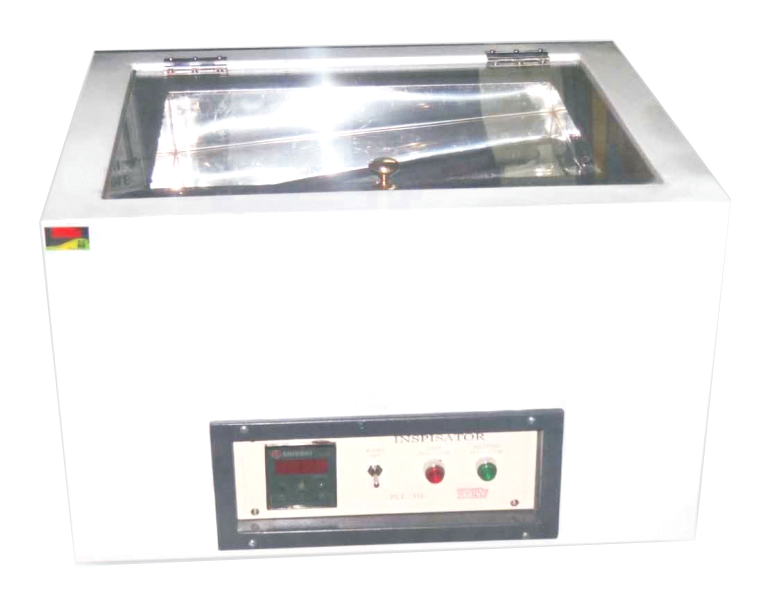

Inspisator (PLT-116)

APPLICATIONS OF INSPISATOR
  • Double Walled. provided with Jacket for sterilizing the media.
  • Double Walled Inspisator is used in Hospitals & Nursing Home.
SALIENT FEATURES & CONSTRUCTION OF INSPISATOR
  • Inner Tank made of Stainless Steel (SS-304 grade).
  • Outer chamber is made of Mild Steel duly powder coated.
  • Provided with jacket for sterilizing the media.
  • Transparent Glass / Acrylic cover to see the samples.
  • Tapered shelf for proper placement of sampling tubes.
  • Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
  • Fitted with drain plug for easy cleaning.
  • Heating by immersion heaters.
  • Temperature range up to 700C.
  • Operating Voltage: 220 Volts AC (50 Hz)```

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF INSPISATOR

Model No. INS 1 INS 2 INS 3
Internal Dimensions (L X W X D) 450x 175x 50mm 450 x 350 x 50mm 600 x 350 x 50mm
Tubes Capacity 25 50 100
Heating Load 1.5 KW 2.0 KW 2.5 KW
Temperature Controlled by microprocessor based digital temperature indicator cum controller
Temperature Range From ambient to 70°C
Temperature Accuracy ± 1°C.
