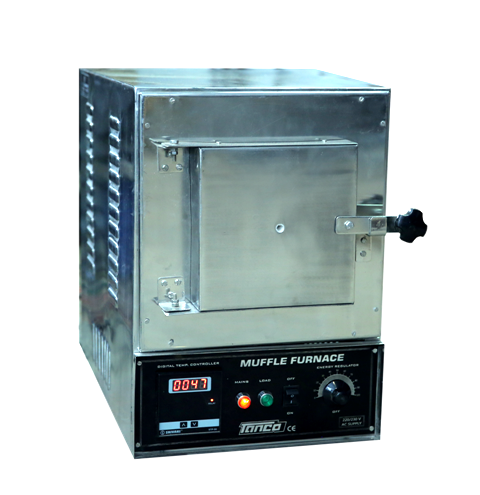

Rectangular Muffle Furnace (1000 ^oC) (PLT-240)

APPLICATIONS OF RECTANGULAR MUFFLE FURNACE (1000^oC)

"TANCO" Rectangular Muffle Furnace is elegantly designed in various applications for R&D labs, Chemical Industries, Pharma & Foundries for making ash for chemical analysis.
Low Cost option for heating the material on high temperature.

SALIENT FEATURES & CONSTRUCTION OF RECTANGULAR MUFFLE FURNACE (1000^oC)

Outer casing is made of thick Mild Steel duly powder coated.
Light weight with ceramic fiber wool insulation (instead of Brick insulation).
Heating elements are made of KANTHAL "A-1" wire.
Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
Fitted with heavy hinges & door is duly insulated.
Maximum working temperature range upto 900^°C are fitted with wounded muffle.
Maximum Temperature is 1000°C and working temp. 900^°C.
Fitted with thermocouple & silver fuse for protection of chamber.
Temperature is controlled by energy regulator with display of temperature on pyrometer fitted on panel with an accuracy of + 5%.
Temperature is controlled by electronic digital temperature indicator cum controller from 50^°C to 900^°C, + 50C fitted on the front panel for easy operations. (Optional).
Temperature is displayed by Digital LED with SV and PV display at front of the Furnace (Optional).
Front Panel is provided with ON/OFF switch, sun Vic energy regulator, pyrometer and indicators.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF RECTANGULAR MUFFLE FURNACE (1000^oC)

Model No.	RMF 1	RMF 2	RMF 3	RMF 4	RMF 5	RMF 6
nner Chamber in mm (W x H x D)	100 x 100 x 225	125 x 125 x 250	150 x 150 x 300	125 x 175 x 475	175 x 175 x 475	200 x 200 x 300
Inches Conversion	4 x 4 x 9	5 x 5 x 10	6 x 6 x 12	5 x 7 x 19	7 x 7 x 19	8 x 8 x 12
Rating in KW	1.5	2.5	3.0	4.0	4.5	5.0
Temperature Range	Maximum Temperature is 1000°C and working temp. 900^°C
Heating	By Embedded heater run around the chamber
Temp. Controller	By energy regulator for furnace fitted with pyrometer
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller (Optional)
Temp. Sentivity	±5% by energy regulator & ±5^°C by digital electronic controller
Relay	Solid state electronic relay with protective heat sink.
Voltage	Operating Voltage: 220 Volts AC (50 Hz)

OPTIONAL FEATURES OF RECTANGULAR MUFFLE FURNACE (1000^°C)

Controlling of Temperature	By Profile (Micro Programmable Controller)
Communication Port	RS - 485 with Window based software
LCD control with Data Logger	(16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.
