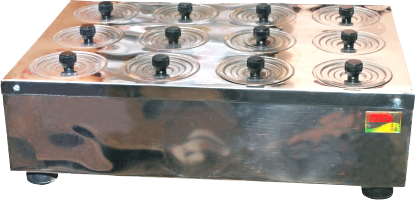

Water Bath Rectangular Single Walled (PLT-107)

APPLICATIONS OF WATER BATH SINGLE WALLED
  • Single Walled Water Bath generally used for evaporating liquids for boiling the material.
  • Single Walled Water Bath is low cost options for heating / boiling ideal tool for Laboratories, Pharmaceutical, Food & Beverage Industries and Institutions.
SALIENT FEATURES & CONSTRUCTION OF WATER BATH SINGLE WALLED
  • Single walled made of heavy gauge stainless steel.
  • Provided with concentric rings (Removable) of 75mm hole.
  • Concentric rings can be removed to accommodate containers of various sizes.
  • Heating by immersion heaters.
  • Temperature range ambient up to 90oC.
  • Operating Voltage: 220 Volts AC (50 Hz)

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF WATER BATH SINGLE WALLED

Model No. WBR-1 WBR-2
Internal dimensions (LX W X D) 300 x 250 x100mm 350 x 400 x100mm
Capacity 8 Ltr 15 Ltr
No. of Holes 6 12
Holes Dia. 75 mm 75 mm
Heating Load 1.0 KW 2.0 KW
