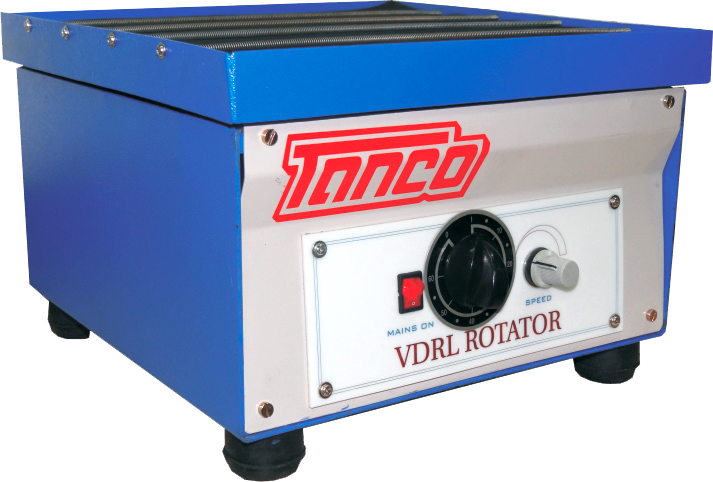

V.D.R.L. Rotator (PLT-201)

APPLICATIONS OF V.D.R.L. ROTATOR

“TANCO” Venereal Disease Research Laboratory (V.D.R.L) Rotator is used for V.D.R.L. tests, blood-grouping tests, and various agglutination tests or for mixing of solutions in small bottles, flasks or beakers.
Useful for serological Test and other tuned clinical diagnostic procedures requiring gentle agitation.

SALIENT FEATURES & CONSTRUCTION OF V.D.R.L. ROTATOR

It is a compact bench top model unit
The shaker is mounted on ball bearing crankshafts to give an orbital circular m otion to th e flasks.
The rotator has covered metal platform Size 13" x 13" with spring, holder clamp.
The diameter of the orbit is approximately - 40 mm
Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Speed range is 70 - 210 RPM.
High Speed (Model) range is up to 350 RPM.
Fitted with heavy duty motor having variable speed.
Speed can be controlled through variable speed regulator knob.
Control panel plate fitted on the front having indicator lamp ON/OFF switch & speed regulator knob.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF V.D.R.L. ROTATOR

MODEL NO:	PLT-201
Plate Form Size (In Inche)	13" x 13"
Plate Form Size (In mm)	325 x 325
Can Accommodate	VDRL Plates, Small Flasks, Bottles & Beakers
Speed Range in Regular Model	70 to 210 RPM
Speed Range in High Speed Model	70 to 350 RPM (Approximate)
Electric Supply	Single Phase 220 / 230 volts A.C. supply.

OPTIONAL FEATURES OF V.D.R.L. ROTATOR

Automatic Timer Mechanical Imported	Can be provided at an extra cost
Digital RPM Meter with proximity sensor	Can be provided at an extra cost
Spare platform with rubber discs	Can be provided at an extra cost
Automatic restart at preset speed in case of power failure.	Can be provided at an extra cost
