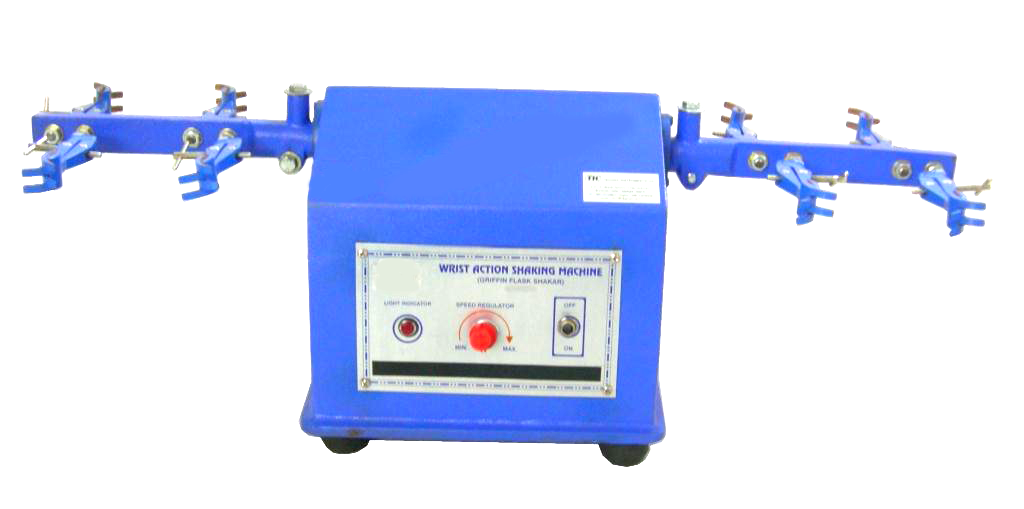

Wrist Action Shaking Machine (PLT-204)

APPLICATIONS OF SHAKING MACHINE WRIST ACTION

"TANCO" Shaking Machine Wrist Action is used for vigorous shaking of various solutions/chemicals in wrist action mode by conical flask fitted in the clamps.
Mixing of solution in small flask / beakers can be made by putting them on top platform fitted with the shaker (Optional).

SALIENT FEATURES & CONSTRUCTION OF SHAKING MACHINE WRIST ACTION

Low Cost option.
Noise Less.
It is a compact bench top model unit
The shaker is mounted on ball bearing.
The rotator has covered metal platform fitted with rubber clamps (Optional).
Can Hold 100 ml to 1000ml capacity flasks.
Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Fitted with heavy duty motor having variable speed.
Speed can be controlled through variable speed regulator knob.
Control panel plate fitted on the front having indicator lamp ON/OFF switch & speed regulator knob.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF SHAKING MACHINE WRIST ACTION

Available in following configurations of platform size, capacity and number of flasks

Model No.	SMW - 4	SMW - 8	SMW - 4	SMW - 8
Capacity To Hold	4 Flask	8 flask	4 flask with top 4 bottle holders	8 flask with top 8 bottle holders
Capacity of Flask	100 to 1000 ml	100 to 1000 ml	100 to 1000 ml	100 to 1000 ml
Speed Regulation	By Variable speed regulator knob
Electric Supply	220/230 volts, A/C Supply

OPTIONAL FEATURES OF SHAKING MACHINE WRIST ACTION

Automatic Timer Mechanical Imported

Can be provided at an extra cost
